Dust - SDS011/018/198

.

Plugin details

Type: Dust

Port Type: Serial

Name: SDS011/018/198

Status ESP32: NORMAL CLIMATE

Status ESP8266: NORMAL CLIMATE

GitHub: P056_SDS011-Dust.ino

Maintainer: .

Used libraries: .

Introduction

A dust sensor will measure the dust concentration of the surrounding air. Depending on the device, different particle sizes can be measured, and the SDS series provides values for up to 2.5 and up to 10 micrometer particle size.

Multiple sensors can be used independently on a single ESP unit, as long as the serial port setup is uniquely configured.

Device

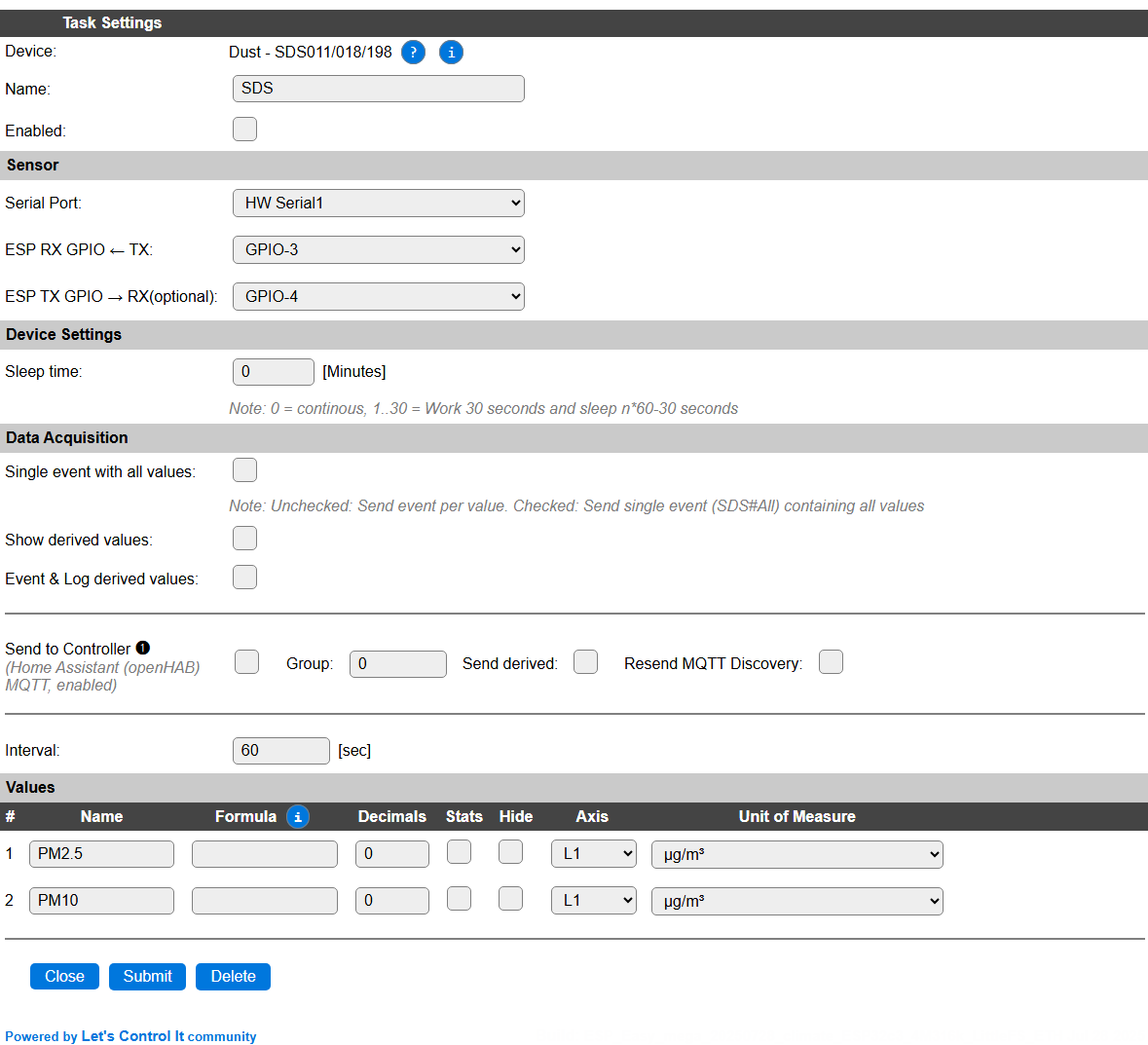

../_images/P056_DeviceConfiguration.png

Task settings

  • Name The name of the task. This should be unique for all devices that are configured. (Initially empty)

  • Enabled For the device to work it has to be enabled. When checked, the device will be started as soon as the ESP starts. If desired, the device can also be enabled from f.e. a rule by using the TaskEnable,<tasknr> or TaskEnable,<taskname> command, or disabled using the corresponding TaskDisable,<tasknr>|<taskname> commands.

Sensor

See: Serial Helper configuration

Device Settings

  • Sleep time: Numeric value to set the sleep time between measurements. The laser used in the sensor has an aproximated life time of 8000 hours of on-time. When enabled continuously, this number will be reached in about 333 days, so less than a year! To prolong the lifetime, a sleep interval can be configured, during which the laser will be turned on, and then turned off for <sleeptime>*60-30 seconds. Range = 0 (continuous) or 1 .. 30 seconds.

This setting is only available if the optional ESP TX GPIO pin is configured correctly, as it involves sending a command to the sensor.

Data Acquisition

This group of settings are standard available configuration items.

  • Single event with all values: When this setting is enabled, all available values will be sent in a single event <TaskName>#All, with all values in order as arguments to the event.

  • Show derived values: When checked, the Devices overview page, and the /json endpoint (used for updating the Devices overview page) will include any Derived values as defined. See the TaskValueSetDerived and TaskValueSetPresentation commands.

  • Event & Log derived values: When checked, the Derived values will be generated as Events, to be handled in Rules, and sent to logging devices like the Syslog server and/or SD-card logging.

(The derived values options are only available if String variables feature is included in the build.)


  • Send to Controller: Select the Controller(s) to send the Values to, either on a TaskRun command applied to the task, or on an Interval time action.

Send to Controller is only visible when one or more Controllers are configured.

Depending on the controller capabilities, some configuration settings may be shown:

../_images/Task_config_page_Controllers_section.png

All configured Controllers are shown here, including the enabled or disabled state (multiple Controllers can be enabled, only a single MQTT Controller can be enabled at one time!).

For each controller the user can select wether the data should be sent on each Interval (or explicit TaskRun).

For the Domoticz controllers the value index (IDX) has to be configured.

For some controllers, like Home Assistant/openHAB, there are extra options available.

  • Group: This represents the group id to combine all values from multiple tasks into a single grouped-device during MQTT AutoDiscovery. Groups, by design, can span multiple ESPEasy devices, if desired, as long as the Task/Valuename combinations are unique. If a group should only combine Tasks from a single ESPEasy unit, the group id should be unique across multiple ESPEasy units. The group description, default Group <n>, can be adjusted in Home Assistant. If the Group value matches the current Unit nr, the Unit name, %sysname%, is used instead of Group <nr>.

  • Retained: For MQTT Controllers, this setting can be enabled to send the values for the current task with the Retain flag set. The Publish Retain flag in the Controller settings will override this by sending all task values with Retain flag enabled.

  • Send derived: This checkbox determines if any configured Derived values should also be sent to the controller (and included in the AutoDiscovery if that’s available and enabled).

  • Resend MQTT Discovery: When checked, will start a resend of the MQTT Discovery process for this task after a random delay, when Submit is clicked, so any changed settings will be updated in the MQTT broker. This setting is only available if the controller is enabled, the Auto Discovery feature is available and enabled for the controller. This setting is not stored.

Other controllers, like f.e. FHEM HTTP, do not support additional settings besides the checkbox to enable sending the data.


  • Interval: By default, Interval will be set to 60 sec for this plugin. It is the frequency used to read sensor values and send these to any Controllers configured for this device. Values will only be sent if data is successfully received from the sensor.

Values

The measured values are available in PM2.5 and PM10.

For a complete description of all available columns see the Plugin - Values section.


Change log

Changed in version 2.0: …

changed 2025-08-05: Enable multiple instances of the plugin, and update the documentation.

added Major overhaul for 2.0 release.

Added in version 1.0: …

added Initial release version.
